ClickHouse

ClickHouse is a fast, open-source, column-oriented database management system that allows for high performance data ingestion and querying.

ingestr supports ClickHouse as a source and destination.

URI format

The URI format for ClickHouse as a source is as follows:

clickhouse://<username>:<password>@<host>:<port>?secure=<secure>

The URI format for ClickHouse as a destination is as follows:

clickhouse://<username>:<password>@<host>:<port>?http_port=<http_port>&secure=<secure>

URI parameters:

• username (required): The username is required to authenticate with the ClickHouse server.
• password (required): The password is required to authenticate the provided username.
• host (required): The hostname or IP address of the ClickHouse server where the database is hosted.
• port (required): The TCP port number used by the ClickHouse server.
• http_port (optional): The port number to use when connecting to the ClickHouse server's HTTP interface. By default, it is set to port 8443. It should only be used when ClickHouse is the destination.
• secure (optional): Set to 1 for a secure HTTPS connection or 0 for a non-secure HTTP connection. By default, it is set to 1.
• engine (optional): The table engine type to use when creating destination tables. Valid values: merge_tree, shared_merge_tree, replicated_merge_tree, stripe_log, tiny_log. Only applicable when ClickHouse is the destination.
• engine.<name> (optional): Engine-level settings to include in the CREATE TABLE statement. Prefix each setting name with engine.. For example, engine.index_granularity=8192 will add SETTINGS index_granularity = 8192 to the table definition. Only applicable when ClickHouse is the destination.

ClickHouse requires a username, password, host and port to connect to the ClickHouse server. For more information, read here. Once you've completed the guide, you should have all the above-mentioned credentials.

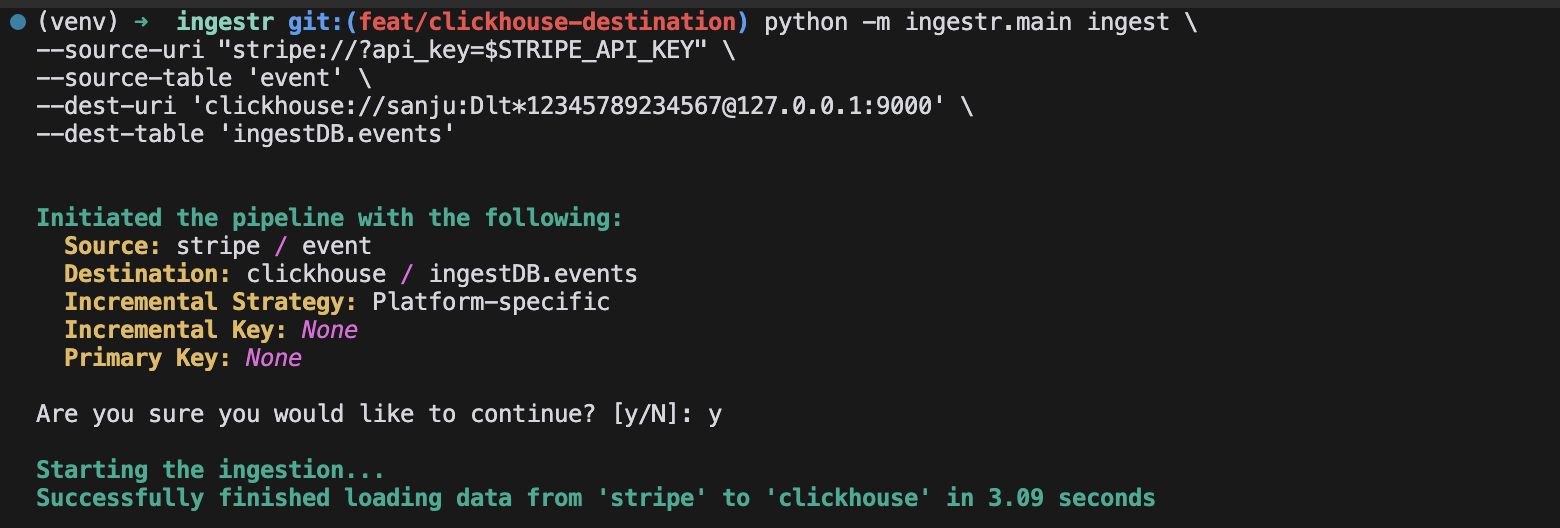

ingestr ingest \
    --source-uri "stripe://?api_key=key123" \
    --source-table 'event' \
    --dest-uri "clickhouse://user_123:pass123@localhost:9000" \
    --dest-table 'stripe.event'

This is a sample command that will copy the data from the Stripe source into ClickHouse.

You can also specify engine settings for the destination table:

ingestr ingest \
    --source-uri "stripe://?api_key=key123" \
    --source-table 'event' \
    --dest-uri "clickhouse://user_123:pass123@localhost:9000?engine.index_granularity=8192" \
    --dest-table 'stripe.event'

WARNING

ingestr does not use ClickHouse transactions. ClickHouse delete+insert is supported as a best-effort two-step operation: ingestr runs ALTER TABLE ... DELETE, waits for the mutation to finish, and then inserts rows from the staging table. This is not a single atomic transaction.

Supported destination strategies

When using ClickHouse as a destination, ingestr supports replace, append, merge, delete+insert, truncate+insert, and scd2.

delete+insert does not use ClickHouse's experimental transaction feature. Concurrent ingestr runs writing to the same ClickHouse table can still interleave between the delete and insert steps.
