GitHub ​

GitHub is a developer platform that allows developers to create, store, manage and share their code.

Bruin supports GitHub as a source for Ingestr assets, and you can use it to ingest data from GitHub into your data platform.

In order to set up GitHub connection, you need to add a configuration item in the .bruin.yml file and asset file. Which fields the connection needs depends on the tables you read:

  • issues, pull_requests, stargazers and repo_events read one repository, so they need owner and repo.
  • repositories lists the repositories of owner, so it needs owner.
  • commits and pull_request_commits can read one repository, every repository of owner, or a list of repositories of any owner. With a list such as commits:bruin-data/*, the connection needs neither owner nor repo. See Reading commits from several repositories.

For details on how to create an access token and which permissions it needs, see the ingestr GitHub documentation.

Follow the steps below to correctly set up GitHub as a data source and run ingestion.

Configuration ​

Step 1: Add a connection to .bruin.yml file ​

To connect to GitHub as a source, you need to add a configuration item to the connections section of the .bruin.yml file. This configuration must comply with the following schema:

yaml
connections:
  github:
    - name: my-github
      access_token: "token_123"
      owner: "John"
      repo: "repo_123"
  • access_token (optional): Used for authentication with the GitHub API. It is required for issues, pull_requests, pull_request_commits and stargazers, and for private repositories. The other tables can read public data without it, but GitHub allows only 60 unauthenticated requests per hour, against 5,000 with a token.
  • owner (optional): The user or organization that owns the repositories, e.g. bruin-data. Required for every table except commits and pull_request_commits with a repository list.
  • repo (optional): The name of one repository, without the owner (e.g. ingestr, not bruin-data/ingestr). It needs owner. Required for issues, pull_requests, stargazers and repo_events.

A connection with only a token can read the commits of any repository the token can see:

yaml
connections:
  github:
    - name: my-github-token
      access_token: "token_123"

When GitHub reports that a rate limit is exceeded, ingestr waits for the time GitHub asks for, at most one hour per wait, and retries up to 5 times, printing a warning with each wait.

Step 2: Create an asset file for data ingestion ​

To ingest data from GitHub, you need to create an asset configuration file. This file defines the data flow from the source to the destination. Create a YAML file (e.g., github_ingestion.yml) inside the assets folder and add the following content:

yaml
name: public.github
type: ingestr
connection: postgres

parameters:
  source_connection: my-github
  source_table: 'issues'

  destination: postgres
  • name: The name of the asset.
  • type: Specifies the type of the asset. Set this to ingestr to use the ingestr data pipeline.
  • connection: This is the destination connection, which defines where the data should be stored. For example: postgres indicates that the ingested data will be stored in a Postgres database.
  • source_connection: The name of the GitHub connection defined in .bruin.yml.
  • source_table: The name of the table in GitHub you want to ingest.

Available Source Tables ​

GitHub source allows ingesting the following sources into separate tables:

TablePKInc KeyInc StrategyDetails
commitssha (one repository) or repo, sha (several repositories)committed_atmergeRetrieves commits on the default branch of one or more repositories, with the repository's owner/name in repo, including signature verification (commit.verification). The interval start and end filter on the committer date, which committed_at mirrors. Commits pushed after their interval has already run are not picked up; use a lookback window (e.g. interval_modifiers).
issues-–replaceRetrieves GitHub issues along with their comments and reactions. Full reload on each run.
pull_requests-–replaceRetrieves pull requests with comments and reactions. Full reload on each run.
pull_request_commitsrepo, pr_number, shapr_updated_atmergeRetrieves every commit of every pull request (open, closed and merged) of one or more repositories, with the repository's owner/name in repo, including commits removed by force pushes and signature verification. The interval start and end filter on the pull request's last update, which pr_updated_at mirrors. Requires ingestr v1.1.94 or later. See Pull request commits.
repo_eventsidcreated_atmergeRetrieves recent repository events. Appends only new events using created_at filter. Only events from the past 30 days allowed.
repositoriesid–replaceRetrieves the repositories of owner, including forks and archived repositories. Private repositories are included when the token can see them. Full reload on each run.
stargazers-–replaceRetrieves stargazers. Full reload on each run.

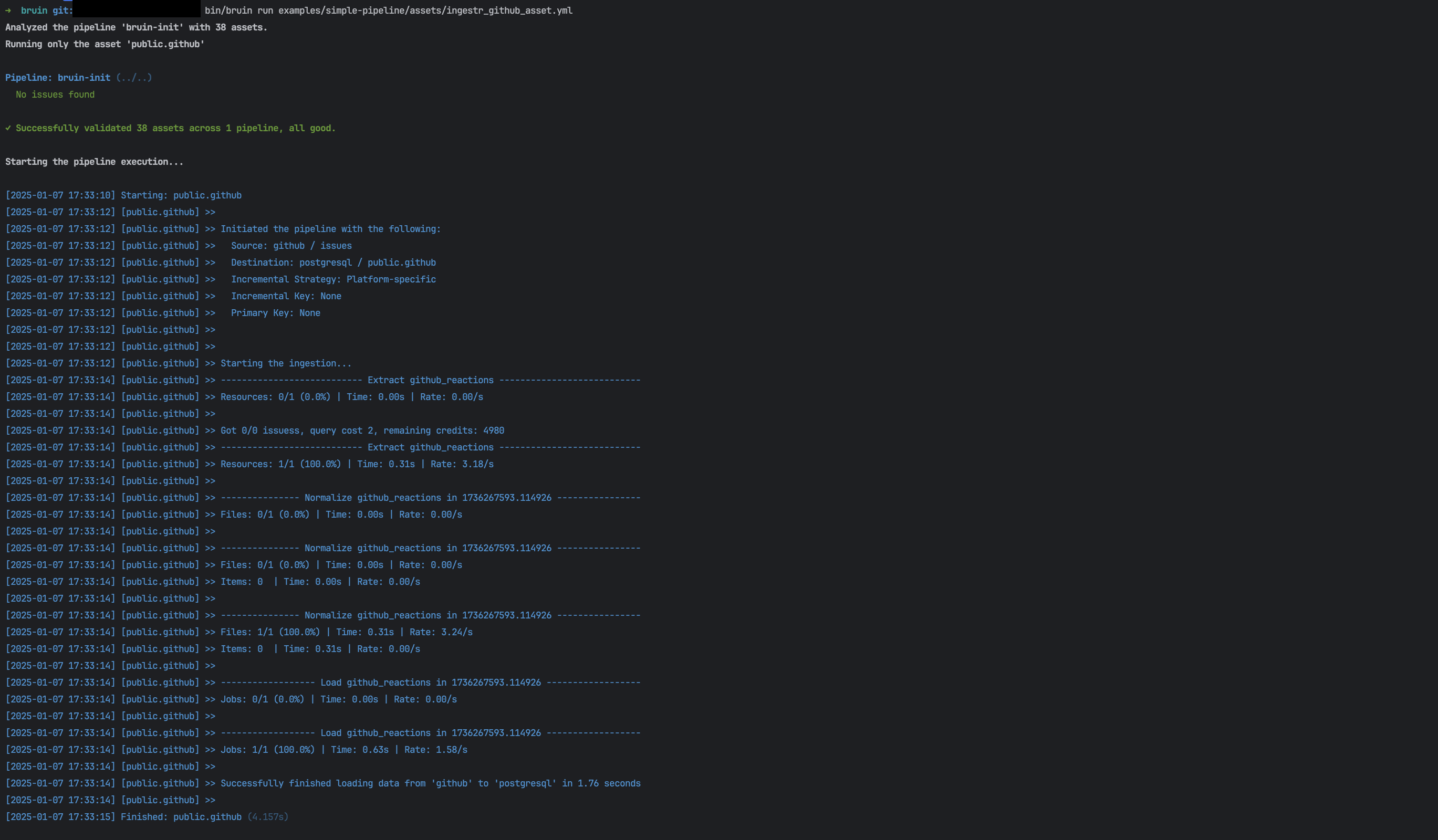

Step 3: Run asset to ingest data ​

bash
bruin run assets/github_ingestion.yml

As a result of this command, Bruin will ingest data from the given GitHub table into your Postgres database.

github

Reading commits from several repositories ​

The commits and pull_request_commits tables can read many repositories into one table. Which repositories they read depends on the connection's repo and on an optional comma-separated list after commits: or pull_request_commits: in source_table. The table below shows commits; pull_request_commits reads the same repositories, but its primary key is always repo, pr_number, sha:

source_tableConnectionRepositories readPK
commitsowner and repothat repositorysha
commitsowner, no repoevery repository of owner the token can list, except forks; archived repositories are includedrepo, sha
commits:<list>any; the list overrides repothe listed repositoriesrepo, sha

Each entry of the list is one of:

  • <repo>: a repository of the connection's owner. Without owner on the connection, the run fails before reading anything.
  • <owner>/<repo>: a repository of any owner.
  • <owner>/*: every repository of <owner> the token can list, except forks.

Any other form, such as <owner>/, * or <owner>/bruin-*, fails the run. If a named repository does not exist or the token cannot read it, the run fails before any commit is read. A repository found through <owner>/* or through the connection's owner that GitHub refuses to serve is skipped with a warning. A repository that is both named and matched by <owner>/* is read once. See the ingestr GitHub documentation for the full rules.

For example, with the token-only connection above, this asset reads every repository of bruin-data except forks, plus one repository of another owner:

yaml
name: raw.github_commits
type: ingestr
connection: postgres

parameters:
  source_connection: my-github-token
  source_table: 'commits:bruin-data/*, other-org/tool'

  destination: postgres

With a connection that has owner: bruin-data, source_table: 'commits:bruin, ingestr' reads bruin-data/bruin and bruin-data/ingestr.

WARNING

When the asset reads several repositories, do not mark sha alone as primary_key: true in the asset's columns. Bruin passes the asset's primary key to ingestr, which then uses it instead of repo, sha. A commit that is in more than one repository (for example a fork and its upstream) is then kept only once, under one of the repositories. Either leave the primary key out, or mark both repo and sha. For pull_request_commits, leave it out or mark repo, pr_number and sha.

WARNING

To switch an existing single-repository table to several repositories, run it once with bruin run --full-refresh. Rows written before the repo column existed have no repo, so they would not match the new rows.

Pull request commits ​

pull_request_commits lists every commit that was part of a pull request, whether the pull request is open, closed or merged. Use it to see the work that never shows up on the default branch: commits combined into one by a squash merge, commits of pull requests closed without merging, and commits removed by a force push. Every row carries the commit's signature status (verified, verification_reason), so you can check commit signing across all the work done in your repositories, not only what was merged.

The table needs an access_token and reads the same repositories as commits (see Reading commits from several repositories). There is one row per pull request and commit; a commit that is part of several pull requests appears once in each. A commit removed from a pull request by a force push stays in the table, with replaced_by_force_push set to true.

Each run reads the pull requests last updated between the interval start and end. Any change counts as an update: a push, a comment, a label, a merge. To keep the table current, use a lookback window (e.g. interval_modifiers). If a pull request changes while it is read, ingestr reads it again with a warning, and fails the run if it is still changing after 4 reads.

For example, with the token-only connection above, this asset reads the pull request commits of every repository of bruin-data and starts each run's interval 30 days early:

yaml
name: raw.github_pull_request_commits
type: ingestr
connection: postgres

parameters:
  source_connection: my-github-token
  source_table: 'pull_request_commits:bruin-data/*'

  destination: postgres

interval_modifiers:
  start: -30d

Bruin Cloud applies interval modifiers automatically. On the CLI they are off by default, so run the asset with --apply-interval-modifiers to use the lookback:

bash
bruin run --apply-interval-modifiers assets/github_pull_request_commits.yml

See the ingestr GitHub documentation for the columns and the limits of the table.
